SVG stands for Scalable Vector Graphics and it is a language for describing 2D-graphics and graphical applications in XML and the XML is then rendered by an SVG viewer. SVG is mostly useful for vector type diagrams like Pie charts, Two-dimensional graphs in an X,Y coordinate system etc. SVG became a W3C Recommendation 14. January 2003.

Embedding SVG – HTML5 allows embedding SVG directly using <svg>…</svg> tag which has following syntax

<svg xmlns=”http://www.w3.org/2000/svg”>

</svg>

Various SVG shapes can be drawn as illustrated.

SVG Circle – An example of the HTML5 version of an SVG example which would draw a circle using <circle> tag is

HTML code

<svg id=”svgelem” height=”200″ xmlns=”http://www.w3.org/2000/svg”>

<circle id=”redcircle” cx=”50″ cy=”50″ r=”50″ fill=”red” />

</svg>

Browser output

HTML5 and SVG

SVG Rectangle – An example of the HTML5 version of an SVG example which would draw a rectangle using <rect> tag is

HTML code

<svg id=”svgelem” height=”200″ xmlns=”http://www.w3.org/2000/svg”>

<rect id=”redrect” width=”300″ height=”100″ fill=”red” />

</svg>

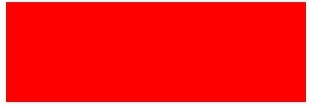

Browser output

HTML5 and SVG 2

 SVG Line – An example of the HTML5 version of an SVG example which would draw a line using <line> tag is

HTML code

<svg id=”svgelem” height=”200″ xmlns=”http://www.w3.org/2000/svg”>

<line x1=”0″ y1=”0″ x2=”200″ y2=”100″

style=”stroke:red;stroke-width:2″/>

</svg>

Browser output

HTML5 and SVG 3

Style attribute can also be used to set additional style information like stroke and fill colors, width of the stroke etc.

SVG Polygon – An example of the HTML5 version of an SVG example which would draw a polygon using <polygon> tag is

HTML code

<svg id=”svgelem” height=”200″ xmlns=”http://www.w3.org/2000/svg”>

<polygon points=”20,10 300,20, 170,50″ fill=”red” />

</svg>

Browser output

HTML5 and SVG 4

SVG Polyline – An example of the HTML5 version of an SVG example which would draw a polyline using <polyline> tag is

HTML code

<svg id=”svgelem” height=”200″ xmlns=”http://www.w3.org/2000/svg”>

<polyline points=”0,0 0,20 20,20 20,40 40,40 40,60″ fill=”red” />

</svg>

Browser output

HTML5 and SVG 5

SVG Gradient – An example of the HTML5 version of an SVG example which would draw a ellipse using <ellipse> tag and would use <radialGradient> tag to define an SVG radial gradient. Similarly <linearGradient> tag can be used to create SVG linear gradient.

HTML code

<svg id=”svgelem” height=”200″ xmlns=”http://www.w3.org/2000/svg”>

<defs>

<radialGradient id=”gradient” cx=”50%” cy=”50%” r=”50%”

fx=”50%” fy=”50%”>

<stop offset=”0%” style=”stop-color:rgb(200,200,200);

stop-opacity:0″/>

<stop offset=”100%” style=”stop-color:rgb(0,0,255);

stop-opacity:1″/>

</radialGradient>

</defs>

<ellipse cx=”100″ cy=”50″ rx=”100″ ry=”50″

style=”fill:url(#gradient)” />

</svg>

Browser output

HTML5 and SVG 6

SVG Support – Most of the web browsers can display SVG just like they can display PNG, GIF, and JPG. Viewing SVG in Internet Explorer needs the Adobe SVG Viewer to view it.
