The Document Object Model (DOM) is a cross-platform and language-independent application programming interface that treats an HTML, XHTML, or XML document as a tree structure wherein each node is an object representing a part of the document. The objects can be manipulated programmatically and any visible changes occurring as a result may then be reflected in the display of the document.
Legacy DOM was limited in the kinds of elements that could be accessed. Form, link and image elements could be referenced with a hierarchical name that began with the root document object. A hierarchical name could make use of either the names or the sequential index of the traversed elements.
After the standardization of ECMAScript, the W3C DOM Working Group began drafting a standard DOM specification. The completed specification, known as “DOM Level 1”, was recommended by W3C in late 1998. By 2005, large parts of W3C DOM were well-supported by common ECMAScript-enabled browsers, including Microsoft Internet Explorer version 6 (from 2001), Opera, Safari and Gecko-based browsers (like Mozilla, Firefox, SeaMonkey and Camino).

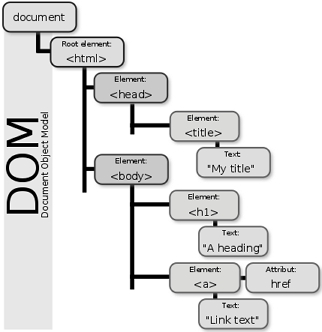

To render a document such as an HTML page, most web browsers use an internal model similar to the DOM. The nodes of every document are organized in a tree structure, called the DOM tree, with the topmost node named as “Document object”. When an HTML page is rendered in browsers, the browser downloads the HTML into local memory and automatically parses it to display the page on screen.
Because DOM supports navigation in any direction (e.g., parent and previous sibling) and allows for arbitrary modifications, an implementation must at least buffer the document that has been read so far (or some parsed form of it).
<h1 id=”demo”>This is a Heading</h1>
document.getElementById(“demo”).innerHTML = “Hello World!”;
document.getElementsByTagName(“h1”).innerHTML = “Hello World!”;
Web browsers rely on layout engines to parse HTML into a DOM. Some layout engines, such as Trident/MSHTML, are associated primarily or exclusively with a particular browser, such as Internet Explorer. Others, including Blink, WebKit, and Gecko, are shared by a number of browsers, such as Google Chrome, Opera, Safari, and Firefox. The different layout engines implement the DOM standards to varying degrees of compliance.
The W3C DOM and WHATWG DOM standards are implemented in most modern browsers. Many browsers extend the standard, so care must be exercised when using them on the web where documents may be accessed by various browsers with different DOMs.
For example, the standard DOM specifies that the getElementsByTagName method in the code below must return a list of all the <P> elements in the document:
var paragraphs = document.getElementsByTagName(“P”);
// paragraphs is the first <p> element
// paragraphs is the second <p> element, etc.
All of the properties, methods, and events available for manipulating and creating web pages are organized into objects (e.g., the document object that represents the document itself, the table object that implements the special HTMLTableElement DOM interface for accessing HTML tables, and so forth). This documentation provides an object-by-object reference to the DOM implemented in Gecko-based browsers.
Accessing the DOM
You don’t have to do anything special to begin using the DOM. Different browsers have different implementations of the DOM, and these implementations exhibit varying degrees of conformance to the actual DOM standard (a subject we try to avoid in this documentation), but every web browser uses some document object model to make web pages accessible to script.
When you create a script–whether it’s inline in a <script> element or included in the web page by means of a script loading instruction–you can immediately begin using the API for the document or window elements to manipulate the document itself or to get at the children of that document, which are the various elements in the web page. Your DOM programming may be something as simple as the following, which displays an alert message by using the alert() function from the window object, or it may use more sophisticated DOM methods to actually create new content, as in the longer example below.
<body onload=”window.alert(‘Welcome to my home page!’);”>
DOM Programming Interface
Interface and Objects
Many objects borrow from several different interfaces. The table object, for example, implements a specialized HTML Table Element Interface, which includes such methods as createCaption and insertRow. But since it’s also an HTML element, table implements the Element interface. And finally, since an HTML element is also, as far as the DOM is concerned, a node in the tree of nodes that make up the object model for an HTML or XML page, the table object also implements the more basic Node interface, from which Element derives.
Document and window objects are the objects whose interfaces you generally use most often in DOM programming. In simple terms, the window object represents something like the browser, and the document object is the root of the document itself. Element inherits from the generic Node interface, and together these two interfaces provide many of the methods and properties you use on individual elements. These elements may also have specific interfaces for dealing with the kind of data those elements hold, as in the table object.
The following is a brief list of common APIs in web and XML page scripting using the DOM
